Hydraulic 20FT Container tilter
- Product details
-

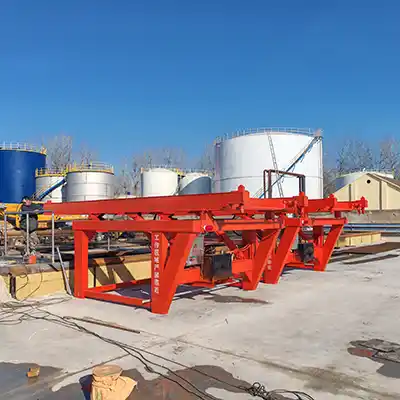

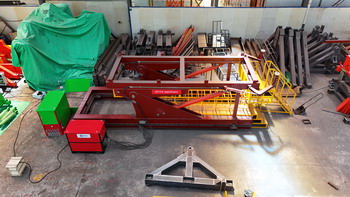

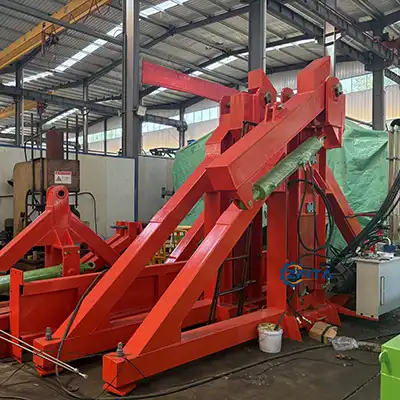

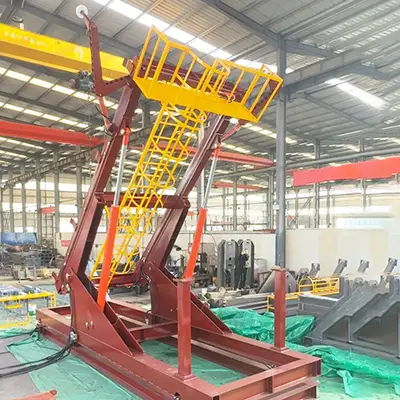

Hydraulic 20FT Container Tilter
Technical Description:

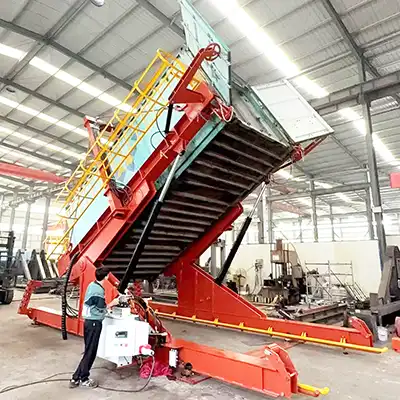

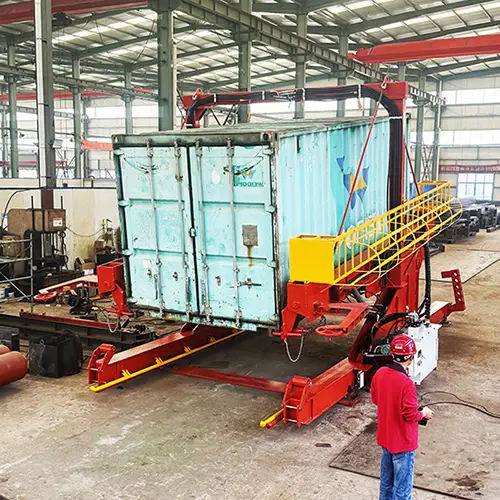

The container bulk material feeding machine, also known as a container tilter, is a fully hydraulic heavy-duty equipment specially designed for vertical loading. It can tilt up to 90 degrees. Compatible with excavators and belt conveyors for vertical material feeding, it enables containers to be filled to the maximum capacity, effectively saving space and transportation costs.
Safety and high efficiency are its core advantages. Adopting a full hydraulic power system, the equipment features stable operation, robust structure and outstanding durability. It only requires one operator to run the whole machine, greatly reducing labor intensity while significantly improving working efficiency.
The container tilter is unique in the country for featuring a fully hydraulic steel structure, which is available in both single and double lane configurations. With just one operator, it can achieve 90°and 180°container flips and can be moved to the nearby sites with a forklift or front loader pushing or transported by a truck-mounted container. The container tilter is an ideal equipment for flipping 20-foot containers, which is commonly used in various industries.
It should be noted that the equipment requires a flat, hardened, and pothole-free surface for operation, ensuring optimal performance of the machine. Its use is recommended for bulk cargo loading and unloading of containers in grain depots, ports, railway stations or freight yards.
Finally, this specialized container tilter boasts excellent quality at an affordable price, making it an ideal investment for companies dealing with container loading and unloading operations.

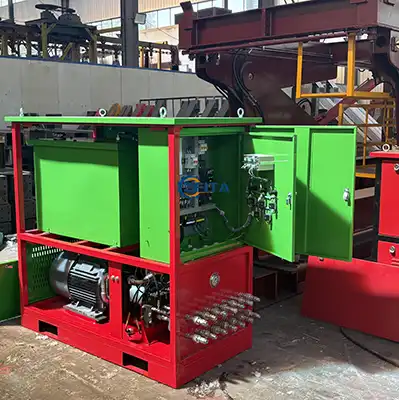

Item ZCT40-SS (Dual Lane, Double Tilt) ZCT40-SD (Dual Lane, Single Tilt) ZCT40-DS (Single Lane, Double Tilt) ZCT40-DD (Single Lane, Single Tilt) Applicable Container 20ft (External dimensions: 6058×2438/2250×2591/2896) Rated Lifting Capacity 40T Movement Type Back-mounted movable type (Weighing type is embedded fixed type) Minimum Hook Height 3785mm (Weighing type: ) 3800mm (Weighing type: 3830mm) Lifting Height 900mm Lane Width 5580mm 3000mm Tilting Angle 90° +90° 0~90° 90° +90° 0~90° Tilting Speed 2.0°/sec Motor Power 18.5KW Axial Piston Pump 25MCY14-1B System Pressure 28Mpa Operation Mode Manual / Remote Control / Automatic Hydraulic Cylinders 12 pcs 10 pcs 11 pcs 9 pcs Hydraulic Oil Type L-HM46 anti-wear hydraulic oil Control Cabinet Stainless steel waterproof housing, waterproof & dust-proof, Chint electrical components Safety Functions Integrated electromagnetic control dual-system anti-fall safety features: 1. Lifting cylinders cannot operate if twist locks are not in place; 2. Twist locks cannot operate after the container leaves the vehicle Optional Configurations 1. Weighing system, 2. Remote control system, 3. Oil tank heating system, 4. Hydraulic oil cooling system 5. Vibrator, 6. Hydraulic opening/closing door, 7. Hydraulic container protection device, 8. Automatic container grabber Equipment Features Structural steel parts are welded with Q355B manganese steel, connected by 12.9-grade high-strength bolts. The twist lock is forged from 40Cr alloy steel. The equipment features simple structure, good stability and strong bearing capacity. Main components (hydraulic cylinders, motors, piston pumps, control valves, etc.) are well-known domestic brands with guaranteed quality. Steel pipes use advanced aviation anti-wear seamless hydraulic pipes. Hydraulic hoses are domestic high-quality double-layer steel wire high-pressure hoses (pressure resistance 35Mpa). The hydraulic oil tank is reasonably designed for easy cleaning; all return-line hydraulic oil is filtered to improve oil cleanliness. Overall Dimensions 9200×6050×(5730-6530)mm 6620×6080×(5730-6530)mm Machine Weight 14T 13T 11.5T 10.5T Remarks Custom container tilters are available according to customer requirements
Features:
This product comes in both a single lane and double lane option.
The single lane version is suitable for smaller spaces or those with lower traffic volumes.
The double lane version is ideal for larger areas or those with higher traffic volumes, as it allows for more people to use the product at once.
Technical Parameters:
Smooth Flipping
The smooth flipping mechanism of our container tilter is made possible by the control lever that regulates the hydraulic cylinders. With this innovative feature, flipping is carried out seamlessly, with zero slippage and zero tilting.
High Efficiency
The container tilter is designed for efficient container handling. As it can quickly invert and rotate containers, loading and unloading of goods become much easier and faster regardless of the desired angle.
Strong Flexibility
The container tilter machine is flexible enough to handle containers of different models and sizes. This feature ensures that our equipment can effectively handle various types of containers, making it a versatile option for your container handling needs.
Remote Control
An important aspect of our container tilter machine is that it can be operated at a distance using a remote control. This feature allows the operator to stay away from the flipping platform during operation, ensuring safety and convenience.
