±90Deg container flipper
- Product details
-

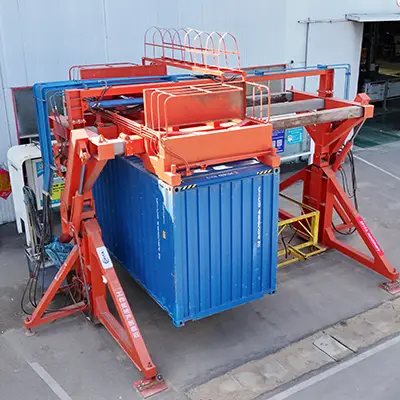

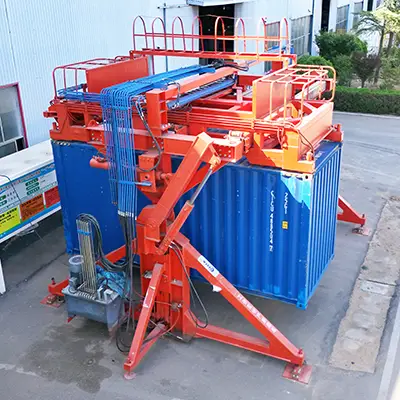

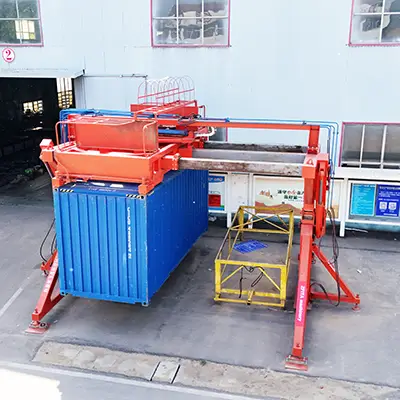

±90Deg 180Deg hydraulic container flipper
The ±90Deg or 180Deg mobile container flipper(there are rail type and full wheeled type for mobile type) is developed based on the ordinary fixed container flipper, with a hydraulic-controlled universal wheel added at each of the four corner support positions (front and rear) of the fixed flipper. When movement is required, the hydraulic wheels can be lifted to touch the ground, allowing the flipper to be easily moved or transferred to another site using a forklift or wheel loader. This design effectively overcomes the limitation that the fixed container flipper cannot be moved, greatly enhancing the equipment's flexibility and adaptability to different working scenarios, while ensuring the stability and reliability of the flipper during operation and movement.
Item ZCT40-SS (Dual Lane, Double Tilt) ZCT40-SD (Dual Lane, Single Tilt) ZCT40-DS (Single Lane, Double Tilt) ZCT40-DD (Single Lane, Single Tilt) Applicable Container 20ft (External dimensions: 6058×2438/2250×2591/2896) Rated Lifting Capacity 40T Movement Type Back-mounted movable type (Weighing type is embedded fixed type) Minimum Hook Height 3785mm (Weighing type: ) 3800mm (Weighing type: 3830mm) Lifting Height 900mm Lane Width 5580mm 3000mm Tilting Angle 90° +90° 0~90° 90° +90° 0~90° Tilting Speed 2.0°/sec Motor Power 18.5KW Axial Piston Pump 25MCY14-1B System Pressure 28Mpa Operation Mode Manual / Remote Control / Automatic Hydraulic Cylinders 12 pcs 10 pcs 11 pcs 9 pcs Hydraulic Oil Type L-HM46 anti-wear hydraulic oil Control Cabinet Stainless steel waterproof housing, waterproof & dust-proof, Chint electrical components Safety Functions Integrated electromagnetic control dual-system anti-fall safety features: 1. Lifting cylinders cannot operate if twist locks are not in place; 2. Twist locks cannot operate after the container leaves the vehicle Optional Configurations 1. Weighing system, 2. Remote control system, 3. Oil tank heating system, 4. Hydraulic oil cooling system 5. Vibrator, 6. Hydraulic opening/closing door, 7. Hydraulic container protection device, 8. Automatic container grabber Equipment Features Structural steel parts are welded with Q355B manganese steel, connected by 12.9-grade high-strength bolts. The twist lock is forged from 40Cr alloy steel. The equipment features simple structure, good stability and strong bearing capacity. Main components (hydraulic cylinders, motors, piston pumps, control valves, etc.) are well-known domestic brands with guaranteed quality. Steel pipes use advanced aviation anti-wear seamless hydraulic pipes. Hydraulic hoses are domestic high-quality double-layer steel wire high-pressure hoses (pressure resistance 35Mpa). The hydraulic oil tank is reasonably designed for easy cleaning; all return-line hydraulic oil is filtered to improve oil cleanliness. Overall Dimensions 9200×6050×(5730-6530)mm 6620×6080×(5730-6530)mm Machine Weight 14T 13T 11.5T 10.5T Remarks Custom container tilters are available according to customer requirements 90Deg 180Deg Product Description:

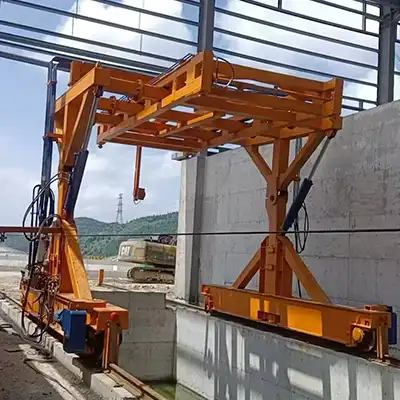

The fully mobile container flipper (rail type) is a specialized equipment designed and manufactured for bulk cargo container loading and unloading. Its advantage lies in its fast loading speed and low operating costs, making it a great investment for companies dealing with large volumes of containers.
The fully mobile container flipper is unique in the country for featuring a fully hydraulic steel structure, which is available in both single and double lane configurations. With just one operator, it can achieve 90°and 180°container flips and can be moved to the nearby sites,because its self-propelled ability The container flipper is an ideal equipment for flipping 20-foot containers, which is commonly used in various industries.

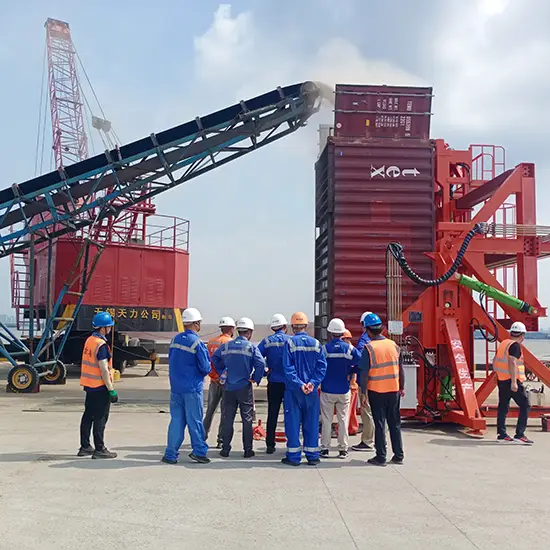

It should be noted that the equipment requires a flat, hardened, and pothole-free surface for operation, ensuring optimal performance of the machine. Its use is recommended for bulk cargo loading and unloading of containers in grain depots, ports, railway stations or freight yards.
Finally, this specialized container flipper boasts excellent quality at an affordable price, making it an ideal investment for companies dealing with container loading and unloading operations.
Features:
This product comes in both a single lane and double lane option.
The single lane version is suitable for smaller spaces or those with lower traffic volumes.
The double lane version is ideal for larger areas or those with higher traffic volumes, as it allows for more people to use the product at once.
Technical Parameters:
Smooth Flipping
The smooth flipping mechanism of our container tilter is made possible by the control lever that regulates the hydraulic cylinders. With this innovative feature, flipping is carried out seamlessly, with zero slippage and zero tilting.
High Efficiency
The container tilter is designed for efficient container handling. As it can quickly invert and rotate containers, loading and unloading of goods become much easier and faster regardless of the desired angle.
Strong Flexibility
The container tilter machine is flexible enough to handle containers of different models and sizes. This feature ensures that our equipment can effectively handle various types of containers, making it a versatile option for your container handling needs.
Remote Control
An important aspect of our container tilter machine is that it can be operated at a distance using a remote control. This feature allows the operator to stay away from the flipping platform during operation, ensuring safety and convenience.
Differences Between Mobile Container Tilters and Conventional Container Tilters
1. Basic Structural Differences
Mobile Container TilterEquipped with traveling mechanisms such as tires or tracks, no embedded foundation required, enabling independent movement and position switching.
Conventional (Fixed) Container TilterFixed on the ground, needs concrete foundation pouring and cannot be moved after installation.
2. Operational Flexibility
Mobile type: Flexible to transfer between different sites in freight yards, factories and ports, realizing multi-purpose use with one machine.
Fixed type: Only operates at a fixed station, requiring vehicles to drive to the designated position.
3. Site Requirements
Mobile type: Low site requirements, only needing flat and hardened ground without infrastructure construction.
Fixed type: Requires advance site planning and foundation construction, with high upfront engineering costs and long construction period.
4. Load Capacity & Efficiency
Mobile type: Relatively low load-bearing capacity limited by structure, with moderate operational efficiency.
Fixed type: Stable frame suitable for heavy loads, ideal for high-frequency continuous operations with higher efficiency.
5. Cost Comparison
Mobile type: Higher equipment procurement cost, saving foundation expenses with flexible overall upfront investment.
Fixed type: Lower unit price, but additional costs for foundation construction and civil engineering.
6. Applicable Scenarios
Mobile Type
Open freight yards with scattered operations and multi-point unloading.
Temporary construction sites, leased operations, and scenarios without fixed stations.
Operating areas restricted by space where foundation construction is impossible.
Fixed Type
Ports, terminals and large bulk cargo distribution centers.
Industrial and mining enterprises with long-term fixed batch unloading.
Professional stations pursuing high productivity and continuous operations.
7. Maintenance Features
Mobile type: Additional vulnerable parts including traveling wheels and steering mechanisms, leading to more maintenance aspects.
Fixed type: Simple structure, only requiring maintenance of hydraulic and tilting components, with more convenient maintenance.
