Bulk Container Unloading System

How Container Tilters and Truck Dumpers Are Transforming Bulk Material Handling Efficiency

In modern industrial logistics, efficient bulk material handling has become one of the most important factors influencing operating costs, labor efficiency, environmental protection, and supply chain performance. Industries such as mining, grain processing, waste recycling, chemical production, biomass energy, and port logistics all face the same challenge: how to unload bulk materials faster, safer, cleaner, and with less labor.

Traditional unloading methods often rely heavily on manual labor, forklifts, excavators, or inefficient gravity unloading systems. These methods are time-consuming, create severe dust pollution, increase labor costs, and may even expose workers to hazardous materials. As industrial production volumes continue to increase, companies are now actively searching for smarter and more automated bulk container unloading systems.

This is where advanced solutions such as container tilter, container flipper, truck dumper, and truck dumping platform technologies are becoming essential.

As a professional manufacturer in the field of bulk material handling, ZFITA provides high-efficiency unloading solutions for ISO containers and heavy-duty trucks, helping global industries improve unloading speed, reduce manpower requirements, and enhance operational safety.

Why Bulk Material Handling Industries Need Smarter Unloading Systems

Many industries transport materials in bulk form because it is more economical and efficient than packaged transportation. However, bulk transportation also creates several operational challenges:

• Large unloading volumes
• Severe dust generation
• High labor requirements
• Moisture-sensitive materials
• Contamination risks
• Toxic or hazardous materials
• Long unloading times
• High operational costs

These problems are especially common in industries such as mining bulk handling, grain unloading, resin container loading, waste recycling loading, coal handling, cement transportation, chemical powder logistics, and feed and biomass transportation.

Traditional unloading methods can no longer satisfy modern production requirements. Companies now require automated bulk container unloading systems capable of handling high-volume material flow safely and continuously.

What Is a Container Tilter?

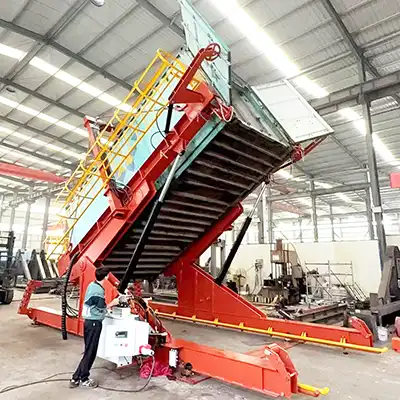

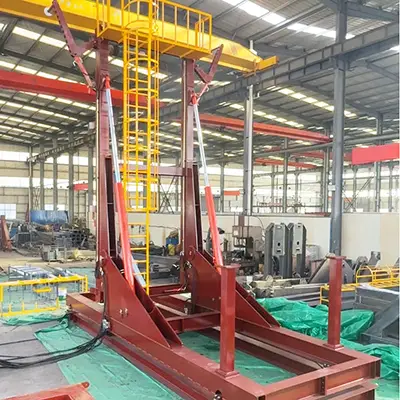

A container tilter, also known as a container flipper, is a fully hydraulic heavy-duty unloading machine designed to tilt ISO shipping containers for rapid bulk material unloading.

The equipment is specially designed for 20-foot and 40-foot containers and is widely used in modern bulk material handling operations.

Instead of unloading materials manually, the container tilter lifts the entire container to a controlled angle, allowing bulk materials to flow smoothly through gravity into receiving hoppers, belt conveyors, storage pits, or processing systems.

This automated unloading process significantly improves unloading efficiency while minimizing labor and dust pollution.

How a Container Flipper Works

The operating principle of a container flipper is simple yet highly efficient.

The container is loaded onto the tilting platform using a truck chassis. Once secured, the hydraulic system gradually lifts the container to an unloading angle, usually between 0 and 45 degrees. During the tilting process, the bulk materials flow automatically out of the container.

Modern container tilter systems include:

• Hydraulic locking systems
• Automatic door opening mechanisms
• Wireless remote control operation
• Safety ladders and inspection platforms
• Dual hydraulic synchronization systems
• Real-time weighing modules
• Semi-automatic or fully automatic controls

Compared with traditional unloading methods, a container flipper can improve unloading efficiency by several times while dramatically reducing labor intensity.

Key Advantages of Container Tilters in Bulk Material Handling

1. High Unloading Efficiency
2. Reduced Labor Costs
3. Improved Safety
4. Better Environmental Protection
5. Lower Material Loss

Technical Features of ZFITA Container Tilter Systems

ZFITA’s heavy-duty container tilter systems are engineered for demanding industrial applications.

Key specifications include:

• Rated loading capacity up to 40,000 kg
• Compatible with ISO standard 20-foot and 40-foot containers
• Hydraulic tilting angle from 0–45°
• Wireless remote control operation
• Siemens PLC control systems
• Schneider electrical components
• Dual hydraulic synchronization cylinders
• Hydraulic door closing systems
• Optional weighing modules
• Electric or diesel power options
• Heavy-duty Q355B steel structure

Industries Using Container Tilters and Container Flippers

• Grain unloading industry
• Mining bulk handling
• Waste recycling loading
• Resin container loading and unloading
• Port and logistics operations

What Is a Truck Dumper?

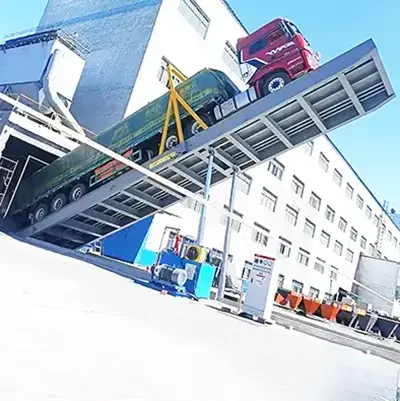

In addition to container tilter systems, another important solution in bulk material handling is the truck dumper, also called a truck dumping platform or truck tipper.

Unlike a container flipper, a truck dumper unloads materials directly from trucks or semi-trailers.

The system uses hydraulic lifting technology to raise the truck to a specific unloading angle, usually between 20 and 40 degrees, allowing materials to flow automatically into receiving pits or conveyors.

Some heavy-duty truck dumping platform systems can reach unloading angles of up to 60 degrees.

Benefits of Truck Dumpers in Bulk Material Handling

• Faster truck unloading
• Lower equipment costs
• Flexible installation options
• Reduced labor requirements

Advanced Safety Features in Modern Truck Dumpers

Modern hydraulic truck dumper systems include multiple safety protections:

• Electrical interlock systems
• Emergency automatic return systems
• Explosion-proof hydraulic pipe protection
• Automatic temperature control
• Hydraulic synchronization technology
• Stable platform leveling controls
• Wireless remote operation

Container Tilter vs Truck Dumper: Which Is Better?

Choose a container tilter if:
• Materials are transported in ISO containers
• You require enclosed transportation
• Moisture protection is important
• Export logistics are involved
• Dust control is critical

Choose a truck dumper if:
• Materials are transported by semi-trailer
• High unloading frequency is required
• Large daily truck volume exists
• Rapid turnaround is necessary

Many companies actually use both container tilter and truck dumping platform systems together to maximize logistics flexibility.

Why Automation Is the Future of Bulk Material Handling

Global industries are rapidly moving toward automation.

Rising labor costs, environmental regulations, and increasing logistics volumes are forcing companies to modernize unloading operations.

Automated bulk container unloading systems provide several long-term advantages:

• Lower operational costs
• Faster unloading cycles
• Better environmental compliance
• Reduced labor dependency
• Improved workplace safety
• Higher throughput capacity

Conclusion

Efficient unloading technology is now a key competitive advantage in modern industrial logistics.

Whether handling grain, mining materials, chemicals, coal, biomass, cement, or recycling products, advanced bulk container unloading systems can dramatically improve operational efficiency while reducing labor costs and environmental impact.

Hydraulic container tilter, container flipper, truck dumper, and truck dumping platform solutions are transforming the future of bulk material handling by providing safer, cleaner, and more automated unloading operations.

As industries continue pursuing smarter logistics systems, companies investing in advanced unloading equipment today will achieve higher efficiency, lower operating costs, and stronger long-term competitiveness tomorrow.
